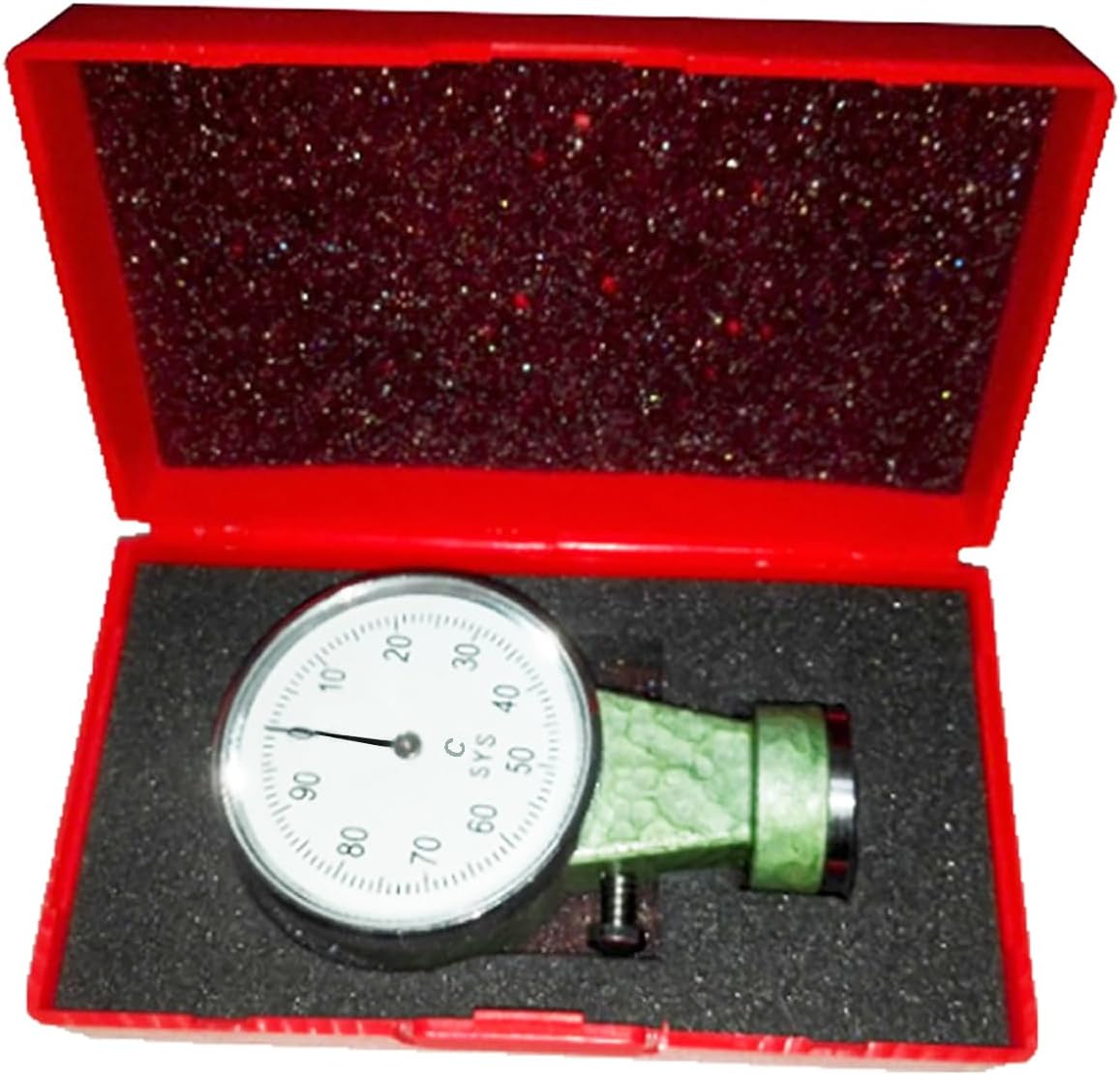

Sand Mould Surface Hardness Tester Compression Stroke 2.50mm Portable Hardness Meter Maximum Load 1500g Hardness Measurement Tools

★ Correct Usage:1. Adjust The 0 Position. When The Pointer Is Not At The 0 Position, Turn The Adjustment Ring To Align The Pointer To The 0 Position.2. When Using, Press The Hardness Tester Tightly On The Plane Of The Sand Mold To Be Tested (The Axis Of The Hardness Tester Should Be Perpendicular To The Surface Of The Sand Mold), So That The Plane Of The Hardness Tester Head Is In Close Contact With The Plane Of The Sand Mold To Be Tested. When The Pointer Stops At A Certain Value, Press The Locking Pin To Lock It, Read The Measured Value, And Then Release The Locking Pin To Return The Pointer To The 0 Position.3. During The Measurement, Test 3 To 5 Times In Each Measurement, And Then Calculate The Average, Which Is The Hardness Value Of The Part.★ Product Specifications:Model: Type CCompression Stroke: 2.50mmMaximum Load: 1500gPreload Load: 180gShape And Size Of Pressure Head: Ball R1.20Accuracy: When The Pointer Is At Any Value, The Corresponding Force Tolerance Of The Pressure Head Is ±5%; When The Pointer Returns To 0, The Tolerance Is ±1°Type C: Suitable For High-Pressure Molding Sand Mold Surface Hardness Testing.Dimensions: 90x 55x28mm★ Packing List:Sand Mold Surface Hardness Tester*1Storage Box*1English Instruction Manual*1

• ★ Hardness Measurement Tools During The Measurement, Test 3 To 5 Times In Each Measurement, And Then Calculate The Average, Which Is The Hardness Value Of The Part. Type C Durometer Suitable For High-Pressure Molding Sand Mold Surface Hardness Testing.
• ★ Sand Mould Surface Hardness Tester Compression Stroke 2.50mm, Maximum Load 1500g, Preload Load 180g, Shape And Size Of Pressure Head Ball R1.20, When The Pointer Is At Any Value, The Corresponding Force Tolerance Of The Pressure Head Is ±5%; When The Pointer Returns To 0, The Tolerance Is ±1°.
• ★ When Portable Hardness Meter Using, Press The Hardness Tester Tightly On The Plane Of The Sand Mold To Be Tested (The Axis Of The Hardness Tester Should Be Perpendicular To The Surface Of The Sand Mold), So That The Plane Of The Hardness Tester Head Is In Close Contact With The Plane Of The Sand Mold To Be Tested.
• ★ When The Hardness Measurement Tools Pointer Stops At A Certain Value, Press The Locking Pin To Lock It, Read The Measured Value, And Then Release The Locking Pin To Return The Pointer To The 0 Position.
• ★ Mould Hardness Tester For Green Sand Mold Adjust The 0 Position. When The Pointer Is Not At The 0 Position, Turn The Adjustment Ring To Align The Pointer To The 0 Position.
