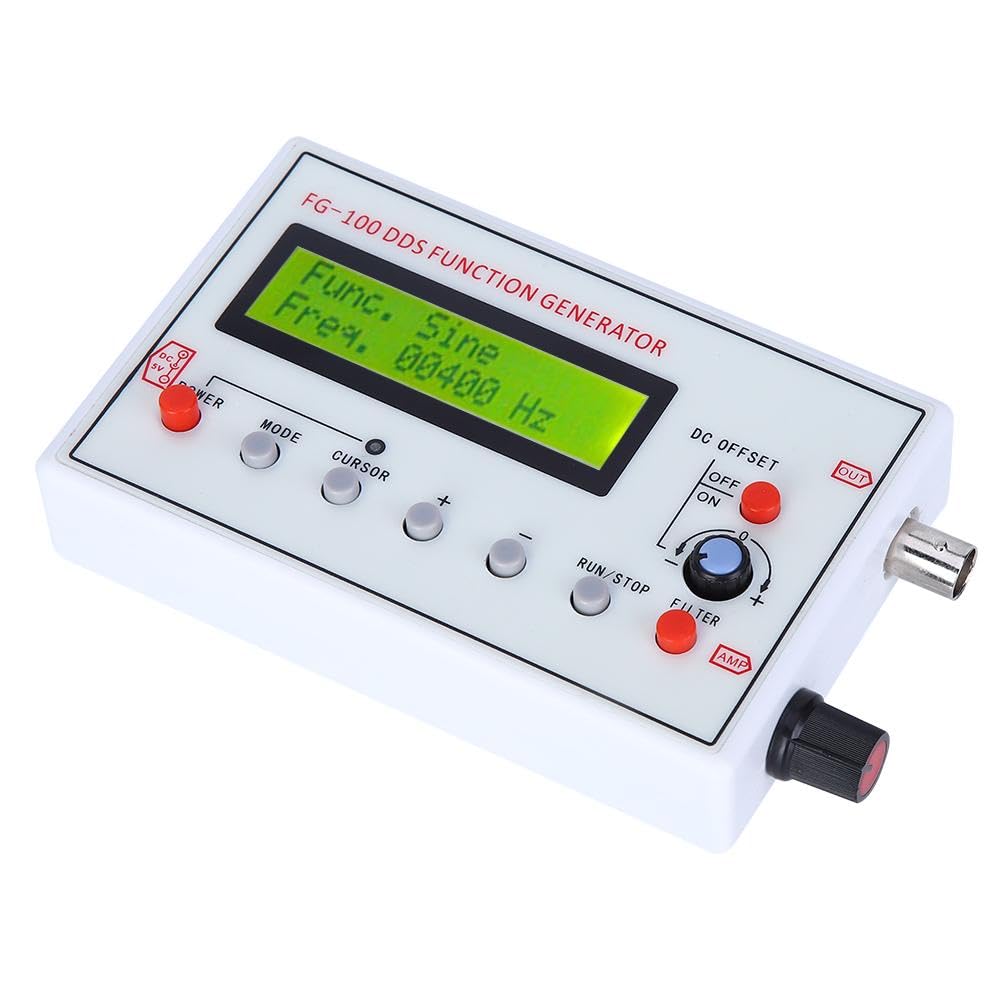

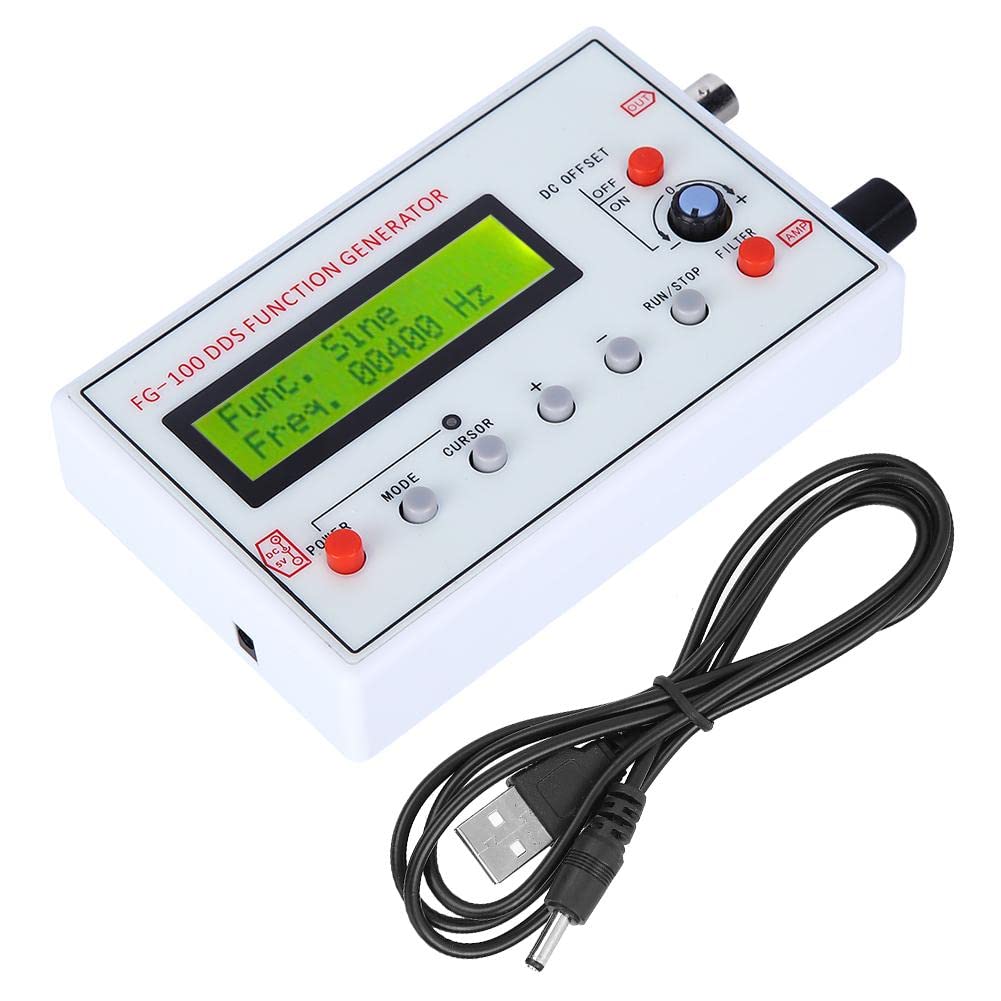

Function Generator, FG‑100 DDS Function Generator Sine Frequency 1HZ‑500KHz Counter Signal Source Generator Meter, Power Supply DC3.5-10V

Feature:1. Made of high quality material, durable and practical to use.Specification:Item Type: Function Generator Material: ABSColor: As shown in the pictureFrequency Range: Sine wave 1Hz~500kHz (Magnitude is flat up to 200kHz, above 200kHz, the magnitude may drop as frequency increases), other waveforms 1Hz-20kHz with good phase noise and small distortion, if you don’t care the phase noise and distortion, it can output full frequency range. Resolution: 1Hz Output Waveforms: Sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave.Sinewave Distortion: 1% (frequency <1kHz); 0.5% (frequency >=1kHz) Output Amplitude: Maximum ±10V(P-P).Output Impedance: 50 ohm DC Offset: Maximum ±10V, can be disabled Internal Filter: For sinewave or pulse, can be turn on/off Power Supply: DC3.5-10V. DC 5V adaptor or 3.7V Lithium battery is recommended.Weight: Approx.172g/6.1ozPackage List:1 x Function Generator 1 x USB Cable1 x Instruction Manual Note:1. Please allow 1‑2cm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

• 【Versatile Functionality】: This square wave generator is not only ideal for oscilloscope attenuators and probe pulse adjustment, but also provides a high level of accuracy and stable frequency, making it perfect for the calibration of an oscilloscope's scan time factor.
• 【Flexible Output Options】: Equipped with a filter that can be easily turned on or off, this generator can be conveniently adjusted to suit the output of sine wave and pulse wave as needed.
• 【Multiple Waveform Options】: The main output waveforms of this generator include sine wave, square wave, triangular wave, and sawtooth wave, providing a diverse range of waveform options for various applications.
• 【Compact and Portable】: With its small size and lightweight design, this generator is incredibly portable, making it easy to carry and use on the go.
• 【Simple Operation】: This generator is equipped with an intuitive interface, ensuring easy and straightforward operation even for beginners.
